Product

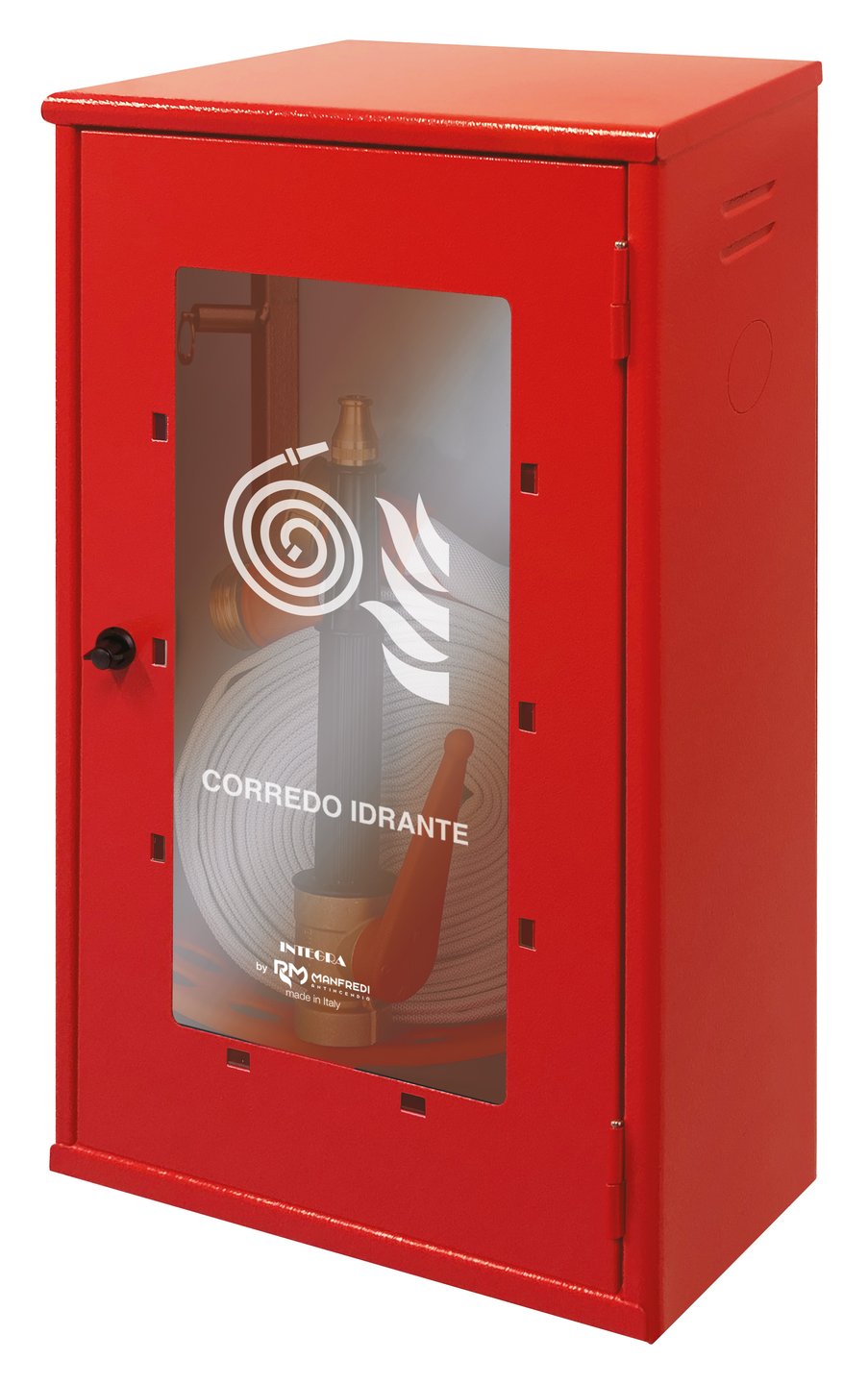

Airone DN70 Outdoor Wall Hydrant with Panel
Product description
WITH PANEL
Standard DN70 cabinet contents
- DN70 flexible hose to UNI 9487, with couplings to UNI 804 and binding to UNI 7422 using rubber binding sleeves
- Red plastic hose support
- 2″ hydrant valve
- Adjustable jet nozzle to UNI 11423
- Installation instructions
Variants
Select up to four variants to compare their specifications.
- Description
Wall Hydrant DN70 AIRONE outdoor supplied with:
Wall-mounted cabinet in electro-galvanized steel 10/10 painted red RAL 3000 with a polyester resin coating, compliant with ISO 9227, resistant to corrosion, door opening more than 180° with concealed hinge in stainless steel, anti-wasp ventilation slots and provision for a hole.
Butterfly opening mechanism with provision for a seal.
Unbreakable transparent panel "INTEGRA".
Standard DN70 wall hydrant contents — single equipment
- flexible DN70 hose, 15 m long, compliant with UNI 9487, with UNI 804 couplings and UNI 7422 binding with rubber protective sleeves.
- Red plastic hose support.
- DN70 wall hydrant valve, 2″.
- Mistral DN70 nozzle with Ø 16 mm orifice (K 160), three-pattern, compliant with UNI 11423.
- Installation and operating instructions.
- CE identification and marking label.
- Hose length
- 15 m
- Data sheets
- Description
Wall Hydrant DN70 AIRONE outdoor supplied with:
Wall-mounted cabinet in electro-galvanized steel 10/10 painted red RAL 3000 with a polyester resin coating, compliant with ISO 9227, resistant to corrosion, door opening more than 180° with concealed hinge in stainless steel, anti-wasp ventilation slots and provision for a hole.
Butterfly opening mechanism with provision for a seal.
Unbreakable transparent panel "INTEGRA".
Standard DN70 wall hydrant contents — single equipment
- flexible DN70 hose, 20 m long, compliant with UNI 9487, with UNI 804 couplings and UNI 7422 binding with rubber protective sleeves.
- Red plastic hose support.
- DN70 wall hydrant valve, 2″.
- Mistral DN70 nozzle with Ø 16 mm orifice (K 160), three-pattern, compliant with UNI 11423.
- Installation and operating instructions.
- CE identification and marking label.
- Hose length
- 20 m
- Data sheets
- Description
Wall Hydrant DN70 AIRONE outdoor supplied with:
Wall-mounted cabinet in electro-galvanized steel 10/10 painted red RAL 3000 with a polyester resin coating, compliant with ISO 9227, resistant to corrosion, door opening more than 180° with concealed hinge in stainless steel, anti-wasp ventilation slots and provision for a hole.
Butterfly opening mechanism with provision for a seal.
Unbreakable transparent panel "INTEGRA".
Standard DN70 wall hydrant contents — single equipment
- flexible DN70 hose, 25 m long, compliant with UNI 9487, with UNI 804 couplings and UNI 7422 binding with rubber protective sleeves.
- Red plastic hose support.
- DN70 wall hydrant valve, 2″.
- Mistral DN70 nozzle with Ø 16 mm orifice (K 160), three-pattern, compliant with UNI 11423.
- Installation and operating instructions.
- CE identification and marking label.
- Hose length
- 25 m
- Data sheets
- Description
Wall Hydrant DN70 AIRONE outdoor supplied with:
Wall-mounted cabinet in electro-galvanized steel 10/10 painted red RAL 3000 with a polyester resin coating, compliant with ISO 9227, resistant to corrosion, door opening more than 180° with concealed hinge in stainless steel, anti-wasp ventilation slots and provision for a hole.
Butterfly opening mechanism with provision for a seal.
Unbreakable transparent panel "INTEGRA".
Standard DN70 wall hydrant contents — single equipment
- flexible DN70 hose, 30 m long, compliant with UNI 9487, with UNI 804 couplings and UNI 7422 binding with rubber protective sleeves.
- Red plastic hose support.
- DN70 wall hydrant valve, 2″.
- Mistral DN70 nozzle with Ø 16 mm orifice (K 160), three-pattern, compliant with UNI 11423.
- Installation and operating instructions.
- CE identification and marking label.
- Hose length
- 30 m
- Data sheets
- Description
Wall Hydrant DN70 AIRONE outdoor supplied with:

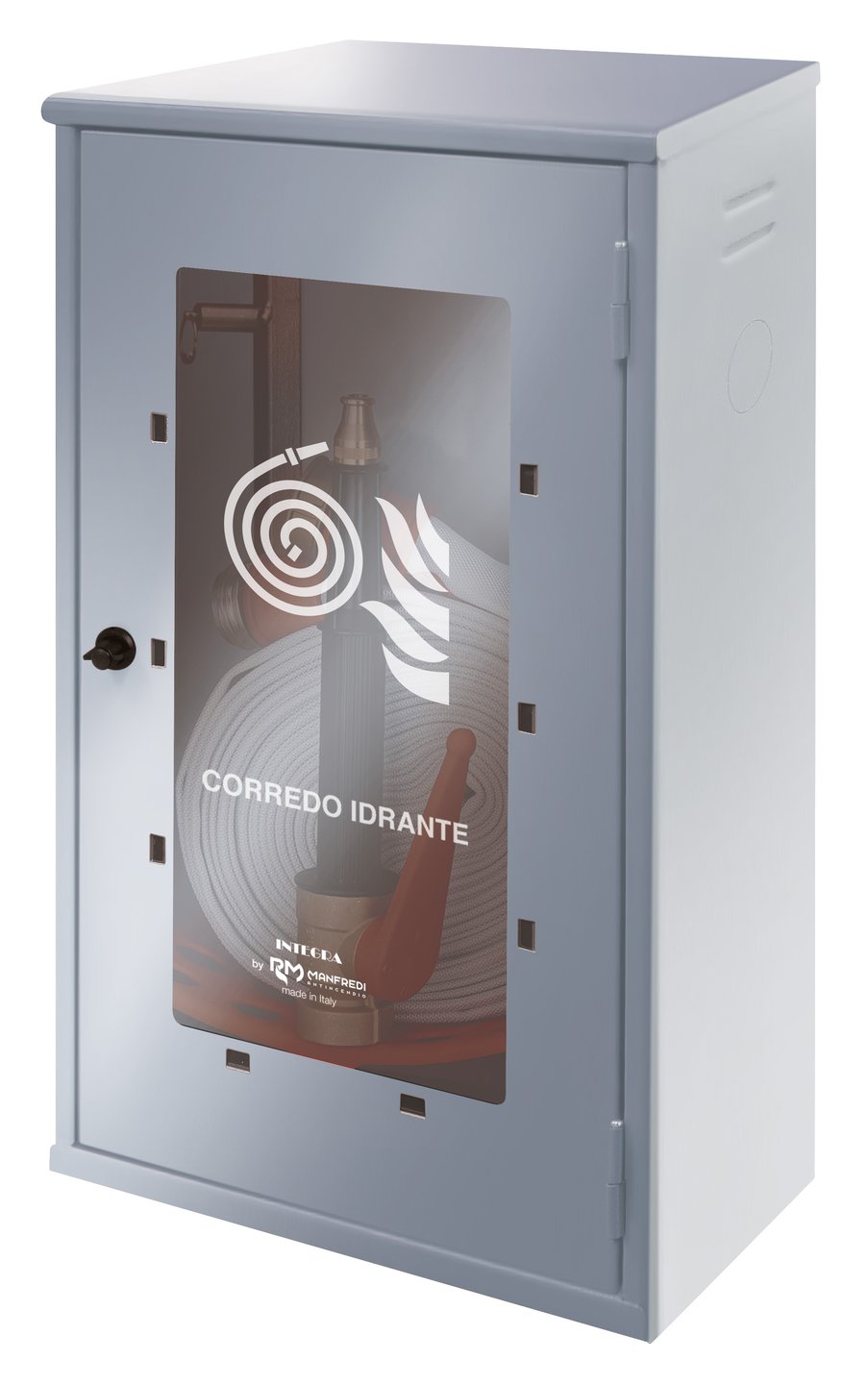

- Wall-mounted cabinet in AISI 304 stainless steel, door opening more than 180° with concealed hinge in stainless steel, anti-wasp ventilation slots and provision for a hole.
- Butterfly opening mechanism with provision for a seal.
- Unbreakable transparent panel "INTEGRA".
Standard DN70 wall hydrant contents — single equipment
- flexible DN70 hose, 15 m long, compliant with UNI 9487, with UNI 804 couplings and UNI 7422 binding with rubber protective sleeves.
- Red plastic hose support.
- DN70 wall hydrant valve, 2″.
- Mistral DN70 nozzle with Ø 16 mm orifice (K 160), three-pattern, compliant with UNI 11423.
- Installation and operating instructions.
- CE identification and marking label.
- Hose length
- 15 m
- Data sheets
- Description
Wall Hydrant DN70 AIRONE outdoor supplied with:
- Wall-mounted cabinet in AISI 304 stainless steel, door opening more than 180° with concealed hinge in stainless steel, anti-wasp ventilation slots and provision for a hole.
- Butterfly opening mechanism with provision for a seal.
- Unbreakable transparent panel "INTEGRA".
Standard DN70 wall hydrant contents — single equipment
- flexible DN70 hose, 20 m long, compliant with UNI 9487, with UNI 804 couplings and UNI 7422 binding with rubber protective sleeves.
- Red plastic hose support.
- DN70 wall hydrant valve, 2″.
- Mistral DN70 nozzle with Ø 16 mm orifice (K 160), three-pattern, compliant with UNI 11423.
- Installation and operating instructions.
- CE identification and marking label.
- Hose length
- 20 m
- Data sheets
- Description
Wall Hydrant DN70 AIRONE outdoor supplied with:
- Wall-mounted cabinet in AISI 304 stainless steel, door opening more than 180° with concealed hinge in stainless steel, anti-wasp ventilation slots and provision for a hole.
- Butterfly opening mechanism with provision for a seal.
- Unbreakable transparent panel "INTEGRA".
Standard DN70 wall hydrant contents — single equipment
- flexible DN70 hose, 25 m long, compliant with UNI 9487, with UNI 804 couplings and UNI 7422 binding with rubber protective sleeves.
- Red plastic hose support.
- DN70 wall hydrant valve, 2″.
- Mistral DN70 nozzle with Ø 16 mm orifice (K 160), three-pattern, compliant with UNI 11423.
- Installation and operating instructions.
- CE identification and marking label.
- Hose length
- 25 m
- Data sheets
- Description
Wall Hydrant DN70 AIRONE outdoor supplied with:
- Wall-mounted cabinet in AISI 304 stainless steel, door opening more than 180° with concealed hinge in stainless steel, anti-wasp ventilation slots and provision for a hole.
- Butterfly opening mechanism with provision for a seal.
- Unbreakable transparent panel "INTEGRA".
Standard DN70 wall hydrant contents — single equipment
- flexible DN70 hose, 30 m long, compliant with UNI 9487, with UNI 804 couplings and UNI 7422 binding with rubber protective sleeves.
- Red plastic hose support.
- DN70 wall hydrant valve, 2″.
- Mistral DN70 nozzle with Ø 16 mm orifice (K 160), three-pattern, compliant with UNI 11423.
- Installation and operating instructions.
- CE identification and marking label.
- Hose length
- 30 m
- Data sheets
